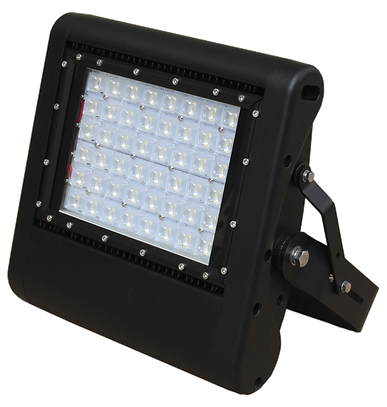

LED Flood
FL-LED-L-G2
(60W-1800W)
Product Description:
Introducing the FL-LED-L-G2 series, the next generation of AGL's popular flood fixture. The FL-LED-L-G2 provides a powerful lumen output and a thin, redesigned housing structure that provides a smaller, more compact body that is lighter and less bulky than before. The FL-LED-L-G2 still incorporates the unique heatsink technology that greatly reduces thermal density and maintains low LED junction temperatures, as well as providing a full range of optics to fulfill a variety of lighting applications.
FEATURES:
Application:
LED Source:
Warranty:
Long Life:
CRI:
Working Temp:
IP Rating:
Lab Tested:
Solid State:
Instant-On:
Qualifications:
LED Flood
Philips Lumileds / Cree / Osram
5 years
100,000 +calculated hours, 12 hrs per day for approximately 10 years
>70
-40°F to 122°F
IP 66
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
ETL Listed
Fixture Model
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
FL-LED-LG2-60W
FL-LED-L-G2-80W
FL-LED-L-G2-100W
FL-LED-L-G2-120W
FL-LED-L-G2-150W
FL-LED-L-G2-200W
FL-LED-L-G2-250W
FL-LED-L-G2-300W
FL-LED-L-G2-350W
FL-LED-L-G2-400W
FL-LED-L-G2-500W
FL-LED-L-G2-600W
FL-LED-L-G2-800W
FL-LED-L-G2-1000W
FL-LED-L-G2-1200W
FL-LED-L-G2-1500W
FL-LED-L-G2-1800W
9,451 lm
12,172 lm
14,320 lm
18,616 lm
22,196 lm
31,504 lm
35,801 lm
44,393 lm
52,985 lm
63,009 lm
71,601 lm
88,785 lm
126,018 lm
143,202 lm
171,842 lm
186,003 lm
223,203 lm
157 lm/W
152 lm/W
143 lm/W
155 lm/W
147 lm/W
157 lm /W
143 lm/W
148 lm/W
151 lm/W
157 lm/W
143 lm/W
148 lm/W
155 lm/W
143 lm/W
142 lm/W
124 lm/W
124 lm/W
10.2 x 14.4 x 3.58
12.2 x 14.4 x 3.58
12.2 x 14.4 x 3.58
14.1 x 14.4 x 3.58
14.1 x 14.4 x 3.58
16.2 x 14.4 x 3.58
18.1 x 14.4 x 3.58
22.1 x 14.4 x 3.58
26.1 x 14.4 x 3.58
26.1 x 14.4 x 3..58
22.9 x 26.4 x 4.56
22.9 x 26.4 x 4.56
31.1 x 22.9 x 4.56
31.1 x 22.9 x 4.56
31.1 x22.9 x 4.56
41.6 x 22.9 x 4.56
36.9 x 30.7 x 6.18
9.24
12.98
12.98
15.84
15.84
18.04
19.58
24.42
27.06
27.06
47.3
48.84
47.3*
47.3*
55.66*
69.96*
76.56*
* These models have external drivers, weights are fixture only
Dimensions:
FL-LED-L-G2
Flood Light Series
General Info
EXPECTED LIFE:
100,000 + calculated hours; 12 hours per
day for 10 years
CRI:
>70 (80 available)
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 6500K
HOUSING:
Rugged, corrosion resistant die-cast aluminum
LENS:
Tempered glass
LED CHIPS:
Lumileds / Osram 5050
DRIVER:
Meanwell or Inventronics
GASKET:
Neoprene
BEAM ANGLES:
Round Profile:
R20°x20°
R30°x30°
R60°x60°
Square Profile:
S60°x60°
S90°x90°
Asymmetric:
45°x145°
70°x145°
60°x90°
60°x135°
Ultra-Asymmetric
20°x125°
25°x125°
30°x95°
60°x140°
WATTAGES:
60W, 80W, 100W, 120W, 150W, 200W,
250W, 300W, 350W, 400W, 600W, 800W,
1000W, 1200W, 1500W, 1800W
INPUT LINE VOLTAGES:
90-305V, 347-480 VAC (optional)
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
> 0.95
DIMMABLE:
1-10V or DALI (both optional)
THD:
< 20%
-40°F to 122°F
Protective UV stabilized powder coated
finish. Natatorium Rated finish available.
Black (RAL #9023)
White (RAL #9016),
Grey (RAL #9006)
Bronze (RAL #8019 or 8028)
(Other colors available with RAL #, at extra cost, contact our sales team for details)
GLARE SHIELD:
GS1 or GS2
PHOTOCELL:
PC
3/5/7 PIN PHOTOCELL:
3/5/7PC
SURGE PROTECTOR:
10kV
20kV
6 FOOT CORD:
6FTC
316 STAINLESS STEEL BRACKET:
SB
TILT MOUNTING BRACKET:
TMB
FROSTED LENS:
FR
NATATORIUM RATE FINISH:
NR
WIRE GUARD:
WG
MOTION SENSOR:
MS
5 Year Warranty
ETL
ACCESSORIES
OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
OPERATING TEMP.
FINISH
LISTING
WARRANTY
PHOTOMETRICS
FL-LED-L-G2-100W/
30°x30°
FL-LED-L-G2-600W/
30°x30°
GALLERY
ACCESSORIES
Slipfitter Mounting
