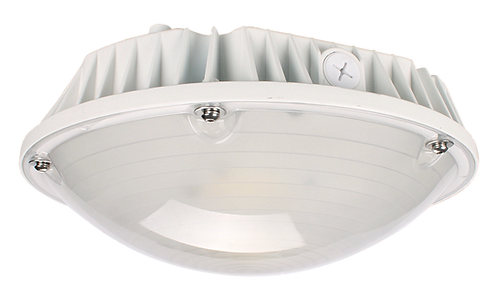

LED Canopy
MOON
(25W-60W)

MOQ-100 units
(contact sales team for details)
Product Description:
The MOON Series provides exceptional lumens with over 130 lumens per watt. This luminaire has over 100,000 calculated life hours and is manufactured with a polycarbonate fresnel lens and an aluminum heatsink. The MOON has additional accessories options such as an integrated motion sensor and also 1-10V dimming.
MOQ-100 units
(contact sales team for details)
FEATURES:
Application:
LED Source:
Warranty:
Long Life:
CRI:
Working Temp:
IP Rating:
Lab Tested:
Solid State:
Instant-On:
Certifications:
LED Canopy
Nichia
5 years
100,000 +calculated hours
>80
-4°F to 122°F
IP 65
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
UL certified
DLC for 40W/60W in 40K/50K
Fixture Model
LED
Chips
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
160°
160°
160°
160°
11.3 diameter x 4.49 ht.
11.3 diameter x 4.49 ht.
11.3 diameter x 4.49 ht.
11.3 diameter x 4.49 ht.
MOON-25W
MOON-40W
MOON-60W
MOON-65W
Nichia
Nichia
Nichia
Nichia
3,248.2 lm
5,322 lm
8,368.4 lm
10,056.3 lm
> 129
> 133
> 139
> 154.7
6.65
6.65
6.65
6.65

Dimensions:


MOON Canopy Series
General Info

MATERIALS
EXPECTED LIFE:
100,000 + calculated hours
CRI:
>80
COLOR TEMPERATURE:
4000K, 5000K, 5700K
HOUSING:
Aluminum
LENS:
Polycarbonate
LED CHIPS:
Nichia 757G-V1
BEAM ANGLES:
160°
WATTAGES:
25W, 40W, 60W, 65W
INPUT LINE VOLTAGES:
100-305V, 347V
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
> 0.90
DIMMABLE:
0-10V (optional)
-4°F to 122°F
Protective UV stabilized powder coated
finish
White (Standard)
MOTION SENSOR:
MS
DIMMING:
DM
MOUNTING OPTIONS:
SM: Surface Mounting
PM 3/4: 3/4" NPT Pendant Mounting
5 Year Warranty
UL listed
DLC* for MOON-40W and 60W in 40K/50K
* Design Lights Consortium (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

OPTICS

PERFORMANCE
ELECTRICAL


OPERATING TEMP.
LISTING

FINISH

WARRANTY

ACCESSORIES


PHOTOMETRICS




MOON 40W/
5000K
MOON 60W/
5000K
