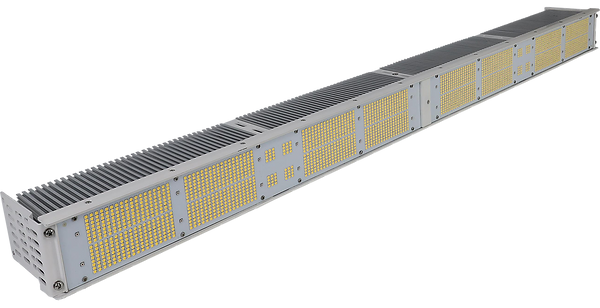

LED High Bay
Horticultural Light
GROW-J3
(300W-600W)
Product Description:
The GROW-J Series is our latest horticultural LED grow light. The GROW-J3 provides high lumen PPFD output and light uniformity, utilizes an autonomous heat dissipation, maximum 600W, light source driven split, suitable for greenhouse high mounting surface , integrated with greenhouse crossbar, minimal impact on natural light irradiation effect. The GROW-J3 is easy to install and offers a wide range of a broad spectrum, which is key for maximizing crop yields.
FEATURES:
Application:
LED Source:
Warranty:
Long Life:
CRI:
Working Temp:
IP Rating:
Lab Tested:
Solid State:
Instant-On:
LED Horticulture Highbay
Philips Lumileds / Cree / Osram
5 years
10,000 +calculated hours, 12 hrs per day for approximately 10 years
>70
-40F to 113F
IP 42
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
Fixture Model
PPF
(µmol/s) 300-800 nm
PPF
(µmol/s) 400-700 nm
Luminaire Heat Output
(W)
PPE
(µmol/J)
Beam
Angle
GROW-J3-300W
GROW-J3-600W
816.2
1,632.5
787.5
1,575.0
1075 BTU/HR (0.315 KWH)
2150 BTU/HR (0.630 KWH)
2.5
2.5
120
120
Dimensions:
GROW-LX 300W
GROW-LX 300W
GROW-J3
Grow Series
General Info
EXPECTED LIFE:
100,000 + calculated hours; 12 hours per
day for 10 years
CRI:
>70
PPE
2.5/ 2.63
HOUSING:
Rugged, corrosion resistant die-cast aluminum
LENS:
Polycarbonate
LED CHIPS:
Lumileds Luxeon T, Cree XPG3
DRIVER:
Inventronics
BEAM ANGLES:
120°
WATTAGES:
300W, 600W
INPUT LINE VOLTAGES:
100-305V
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
>0.90
-40F to 122F
Protective UV stabilized powder coated
finish
Grey finish default
DIMMABLE:
0-10V or DALI
5 Year Warranty
ETL
DLC (Design Lights Consortium)
OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
OPERATING TEMP.
FINISH
ACCESSORIES
LISTING
WARRANTY
PHOTOMETRICS
GROW-J3
2.5 PPE
GROW-J3
2.63 PPE
300W
300W
600W
600W
