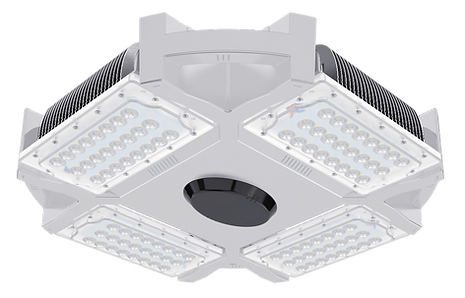

With Adjustable Modules
DRONE
(100W-480W)
LED High Bay
Product Description:
The DRONE series provides exceptional lumens up to 160 lm/W. This luminaire has a calculated life of over 100,000 hours and is constructed with enhanced cooling fins to provide maximum performance and reduce energy cost. The luminaire is ideal for offices, schools, warehouses, hospitals, factories, commercial buildings, etc. The DRONE is unique in that the luminaire chips can be rotated up to 200° with its tool-less design.
FEATURES:
Application:
​
LED Source:
​
Warranty:
​
Long Life:
​
CRI:
​
Working Temp:
​
IP Rating:
​
Lab Tested:
​
Solid State:
​
Instant-On:
​
Qualifications:
LED High Bay
Philips Lumileds
5 years
100,000 +calculated hours at L70 standards
>70 / 80
-40°F to 140°F
IP 65
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
ETL listed
Fixture Model
LED
Chips
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
DRONE-100W
​
DRONE-150W
​
DRONE-200W
​
DRONE-240W
​
DRONE-300W
​
DRONE-400W
​
DRONE-480W
Philips Lumileds
​
Philips Lumileds
​
Philips Lumileds
​
Philips Lumileds
​
Philips Lumileds
​
Philips Lumileds
​
Philips Lumileds
159.3 lm/W
156.9 lm/W
156.2 lm/W
157.2 lm/W
157.2 lm/W
157.1 lm/W
156.5 lm/W
16.88 x 16.88 x 3.85
​
16.88 x 16.88 x 3.85
​
16.88 x 16.88 x 3.85
​
16.88 x 16.88 x 3.85
​
16.88 x 16.88 x 5.82
​
16.88 x 16.88 x 5.82
​
16.88 x 16.88 x 5.82
11.68
​
11.68
​
13.44
​
13.44
​
18.48
​
19.36
​
19.36
60° / 120°
​
60° / 120°
​
60° / 120°
​
60° / 120°
​
30° / 60° / 90° / 120°
​
30° / 60° / 90° / 120°
​
30° / 60° / 90° / 120°
15,923.3 lm
23,541.8 lm
31,248.3 lm
37,727.9 lm
47,169.1 lm
62,838.3 lm
75,143.0 lm
Dimensions:
DRONE-100W to 240W
DRONE-300W to 480W
DRONE
High Bay Series
General Info
EXPECTED LIFE:
100,000 + calculated hours at L70 standards
​
CRI:
>70
​
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 5700K
HOUSING:
Aluminum (Heatsink)
Polycarbonate (Housing)
LENS:
Polycarbonate
LED CHIPS:
Philips Lumileds
DRIVER:
Meanwell
​
BEAM ANGLES:
100-240W: 60°, 120°
300-480W: 30°, 60°, 90°, 120°
WATTAGES:
100W, 150W, 200W, 240W, 300W, 400W, 480W
INPUT LINE VOLTAGES:
100-277V, 250-528V (optional)
​
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
> 0.95
DIMMABLE:
0-10V (optional)
​
-40°F to 140°F
Protective UV stabilized powder coated
finish
White
Black
​
Other colors available, please contact our sales team for details.
MOTION SENSOR:
GS1 or GS2
​
DIMMING:
DM
​
5 Year Warranty
ETL listed
OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
FINISH
OPERATING TEMP.
ACCESSORIES
LISTING
WARRANTY
PHOTOMETRICS
DRONE-100W/
120°
DRONE-240W/
60°
GALLERY
