LED Post Top
Replaces HID/MH/HPS 400-600W
CAPRICORN-2
(30W-150W)
Product Description:
The CAPRICORN-2 Series delivers exceptional thermal control and uses a die-cast aluminum housing with a calculated life span of over 100,000 hours. This luminaire has been lab tested nationally in accordance with IES standards and is highly resistant to shock and vibration. This luminaire can be applied in parking lots, street lighting, storage lighting, and walkway lighting.
FEATURES:
Application:
​
LED Source:
​
Warranty:
​
Long Life:
​
CRI:
​
Working Temp:
​
IP Rating:
​
Lab Tested:
​
Solid State:
​
Instant-On:
​
Qualifications:
LED Post Top
Osram
5 years
100,000 +calculated hours, at L70 standards
>70
-22°F to 122°F
IP 65
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
UL certified
Fixture Model
Certification
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
CAPRICORN-2 LG 50W
​
CAPRICORN-2 LG 75W
​
CAPRICORN-2 LG 100W
​
CAPRICORN-2 LG 150W
​
CAPRICORN-2 SM 30W
​
CAPRICORN-2 SM 50W
​
CAPRICORN-2 SM 75W
​
CAPRICORN-2 SM 100W
UL
​
UL
​
UL
​
UL
​
UL
​
UL
​
UL
​
UL
5,487.1 lm
​
8,147.0 lm
​
11,264.0 lm
​
18,740.1 lm
​
3,742.5 lm
​
5,990.3 lm
​
9,512.4 lm
​
12,457.6 lm
109.7 lm/W
​
108.6 lm/W
​
112.6 lm/W
​
124.9 lm/W
​
124.7 lm/W
​
119.8 lm/W
​
135.8 lm/W
​
124.5 lm/W
Φ17.5 x 21.5
​
Φ17.5 x 21.5
​
Φ17.5 x 25.5
​
Φ17.5 x 25.5
​
Φ14.96 x 21.02
​
Φ14.96 x 21.02
​
Φ14.96 x 21.02
​
Φ14.96 x 21.02
16.5
​
16.72
​
16.72
​
17.38
​
15.4
​
15.4
​
15.4
​
15.4
120°
​
120°
​
120°
​
120°
​
120°
​
120°
​
120°
​
120°
Dimensions:
CAPRICORN-2 LG 100W/150W
CAPRICORN-2 LG 50W/70W
CAPRICORN-2 SM
CAPRICORN-2
Post Top Series
General Info
EXPECTED LIFE:
100,000 + calculated hours at L70 standards
​
CRI:
>70
​
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 5700K
HOUSING:
Aluminum
LENS:
Polycarbonate
LED CHIPS:
Osram
DRIVER:
Meanwell
​
BEAM ANGLES:
120°
WATTAGES:
50W, 75W, 100W, 150W (LG models)
30W, 50W, 70W, 100W (SM models)
​
INPUT LINE VOLTAGES:
100-277V, 480V (optional)
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
95%
DIMMABLE:
1-10V (optional)*
​
* Capricorn-2-LG-50W/120-277V
Capricorn-2-SM-50W/120-277V
Capricorn-2-SM-70W/200-480V
are NOT available with dimming
-22°F to 122°F
Protective UV stabilized powder coated
finish
Bronze (Standard)
Black (RAL #9004)
White (RAL #9016),
Grey (RAL #9006)
Other colors available with RAL # (MOQ 100 units, contact our sales team for details)
POLE CONNECTOR (Inside Diameter):
3" (Standard)
2.37"
​
3 PIN PHOTOCELL:
3PC
​
3 PIN PHOTOCELL RECEPTACLE:
3PCR
​
7 PIN PHOTOCELL:
7PC
​
7 PIN PHOTOCELL RECEPTACLE:
7PCR
​
SHORTING CAP:
SC
​
SURGE PROTECTION:
10kV
20kV
​
MOUNTING OPTIONS:
1A (1-arm Side Mount)*
3A (3-arm Center Mount)
​
* only available for SM models
5 Year Warranty
UL listed
OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
OPERATING TEMP.
FINISH
LISTING
WARRANTY
ACCESSORIES
PHOTOMETRICS
CAPRICORN-2 100W
5000K
CAPRICORN-2 150W
5000K
GALLERY

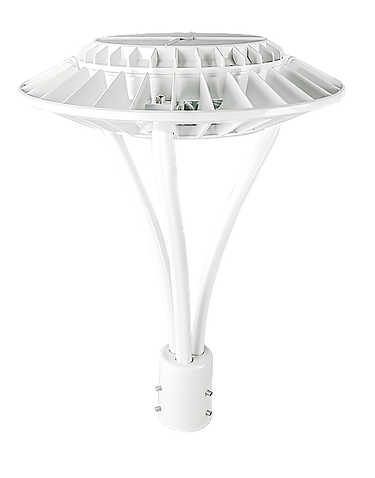

3-Arm Center Mount

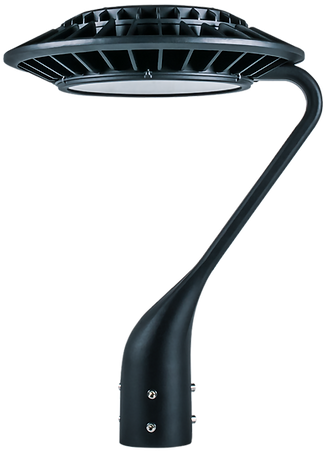

1-Arm Side Mount
(only available for SM models)
ACCESSORIES
