LED High Bay
100W replaces 250W HPS
450W replaces 1500W HPS
CAPELLA
(50W-450W)

Product Description:
The CAPELLA series is available from 50W ~ 450W. This luminaire can be mounted in a variety of ways with its best usage as a high bay. This luminaire features a calculated life span of over 150,000 hours and offers instant-on/instant-restrike. The CAPELLA can also be dimmable with an optional accessory. This fixture is available in a variety of color temperatures ranging from 3K-6K.
FEATURES:
Application:
LED Source:
Warranty:
Long Life:
CRI:
Working Temp:
IP Rating:
Lab Tested:
Solid State:
Instant-On:
Qualifications:
LED High Bay
Cree XT-E
5 years
150,000 +calculated hours at L70 standards
>70
-22°F to 140°F
IP 65
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
UL certified
Fixture Model
Certification
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
CAPELLA-60W
CAPELLA-90W
CAPELLA-120W
CAPELLA-150W
CAPELLA-200W
CAPELLA-300W
CAPELLA-450W
UL
UL
UL
UL
UL
UL
UL
4,401 lm
7,610 lm
9,934 lm
14,432 lm
19,243 lm
28,864 lm
43,296 lm
> 88
> 83
> 82
> 96
> 95
> 95
> 94
see charts below
8.4
14.6
16.31
18.7
24.25
38.8
49.9
120°, 85°x135°
120°
120°
120°, 45°, 85°x135°
120°, 30°, 45°, 85°x135°
120°, 30°, 45°, 85°x135°
120°, 30°, 45°, 85°x135°



Dimensions:


CAPELLA 50W
CAPELLA 300W
CAPELLA 450W
CAPELLA 90W-200W

CAPELLA
High Bay Series
General Info

OPTICS

PERFORMANCE
EXPECTED LIFE:
150,000 + calculated hours at L70 standards
CRI:
>70
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 6500K
HOUSING:
Die-cast aluminum alloy
LENS:
Polycarbonate
LED CHIPS:
Cree XTE
DRIVER:
Meanwell
GASKET:
Rubber
BEAM ANGLES:
30°, 45°, 90°, 120°, 85°x135°, 60°x135°
WATTAGES:
50W, 90W, 120W, 150W, 200W, 300W,
450W
INPUT LINE VOLTAGES:
120-277V, 200-480 VAC (optional)
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
0.96 minimum
DIMMABLE:
0-10V (optional)
THD:
< 25%
-22°F to 140°F
Protective UV stabilized powder coated
finish
Black (Standard)
Other colors available with RAL # (MOQ of
300 units, contact our sales team for details)
PHOTOCELL (Tyco):
PC
MOTION SENSOR (Merrytek):
MS
5 Year Warranty
UL certified
ELECTRICAL


MATERIALS

OPERATING TEMP.
FINISH

LISTING

WARRANTY

ACCESSORIES


PHOTOMETRICS




CAPELLA 90W/
120°
CAPELLA 300W/
120°

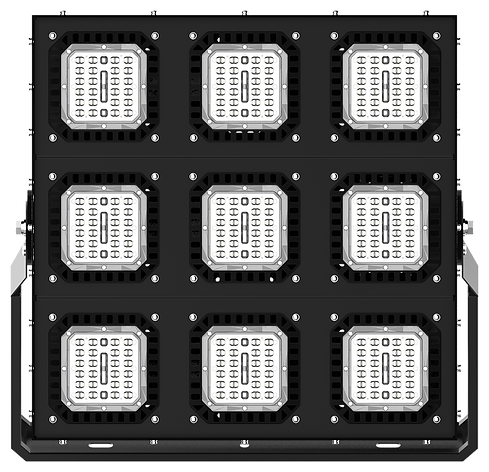

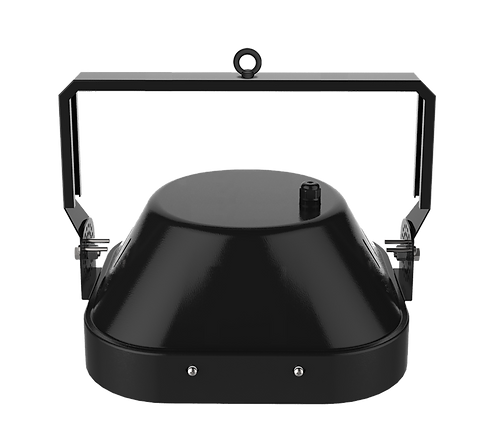

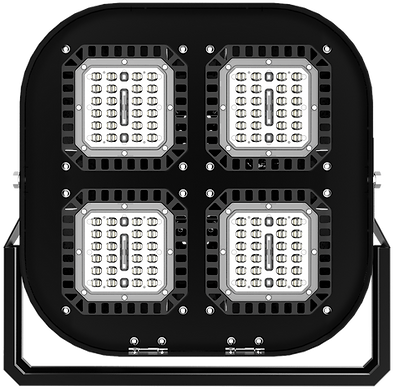

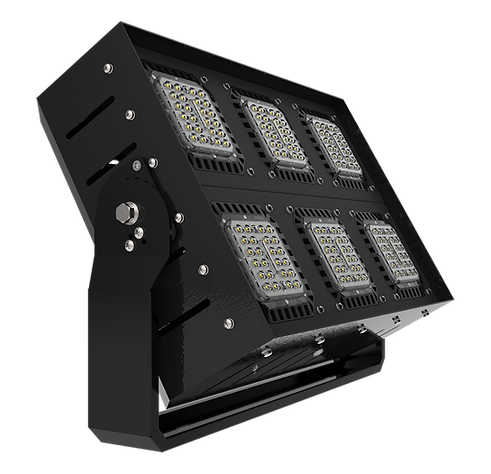

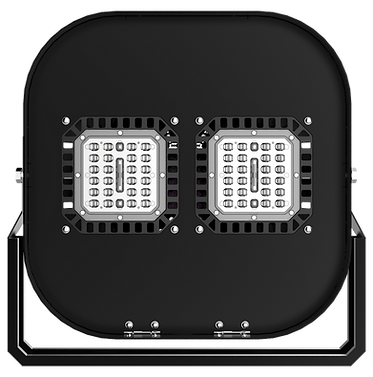

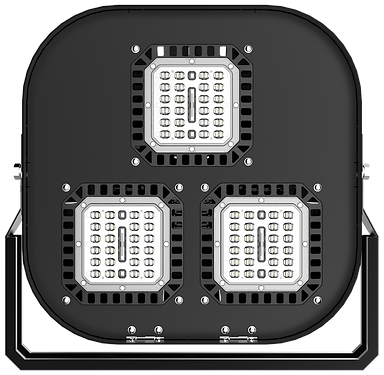

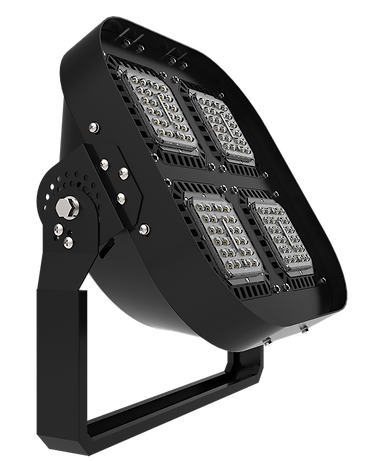

GALLERY







ACCESSORIES
