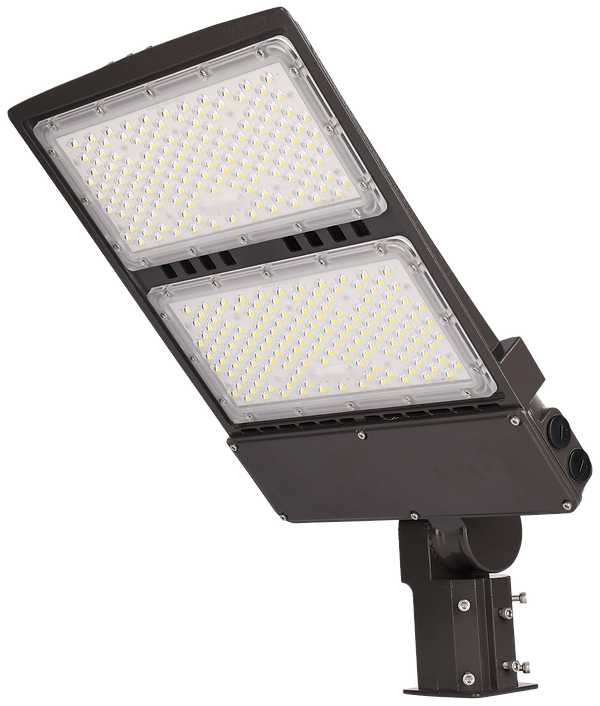

LED Shoebox
SLIM
(50W-300W)
Product Description:
The SLIM Series provides exceptional lumen output with an efficacy of up to 130 lumens per watt. The fixture has a distinctly thin housing making it lightweight but still strong without losing any structural integrity. The luminaire can be mounted in a variety of ways and is available in multiple color options. The SLIM is easy to install and can withstand adverse weather conditions.
FEATURES:
Application:
LED Source:
Warranty:
Long Life:
CRI:
Working Temp:
IP Rating:
Lab Tested:
Solid State:
Instant-On:
Qualifications:
LED Shoebox
Philips
5 years
100,000 +calculated hours at L70 standards
>70 (80 available)
-22°F to 122°F
IP 66
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
ETL certified
Fixture Model
Certification
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
SLIM- 50W
SLIM-100W
SLIM-150W
SLIM-200W
SLIM-240W
SLIM-300W
ETL
ETL
ETL
ETL
ETL
ETL
10,416.2 lm
13,541.0 lm
20,367.8 lm
25,973.7 lm
31,837.8 lm
39,636.2 lm
138.8 lm/W
135.4 lm/W
135.7 lm/W
129.8 lm/W
132.6 lm/W
132.1 lm/W
16.85 x 9.72 x 2.17
16.85 x 9.72 x 2.17
16.85 x 9.72 x 2.17
18.03 x 10.55 x 2.17
21.18 x 12.79 x 2.17
21.18 x 12.79 x 2.17
7.7
7.92
8.14
9.02
13.64
14.08
T3
T3
T3
T3
T3
T3
Dimensions:
SLIM-50W-150W
SLIM-200W-300W
SLIM
Shoebox Series
General Info
EXPECTED LIFE:
100,000 + calculated hours at L70 standards
CRI:
>70 (80 available)
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 5700K
HOUSING:
Aluminum
LENS:
Polycarbonate
LED CHIPS:
Philips
DRIVER:
Sosen (Meanwell/Inventronics available)
BEAM ANGLES:
Type 3 (90 x 140)
Type 4 (100 x 140)
Type 5 (120 x 120), (60 x 60), (30 x 30)
WATTAGES:
50W, 100W, 150W, 200W, 240W, 300W
INPUT LINE VOLTAGES:
100-277V (277-480 VAC optional)
INPUT LINE FREQUENCY:
50-60 Hz
POWER FACTOR:
> 0.93
DIMMABLE:
1-10V (optional)
THD:
< 15%
-22°F to 122°F
Protective UV stabilized powder coated
finish
Black (RAL #9005)
Other colors available with linear driver/driver box (in place of circular driver). Contact our sales team for details
MOTION SENSOR:
MS
PHOTOCELL RECEPTACLE:
3P (3 pin photocell)
5P (5 pin photocell)
7P (7 pin photocell)
SHORTING CAP:
SC
POWER ADJUSTABLE SWITCH:
PAS
MOUNTING OPTIONS:
SF (Slipfitter)
SAP (Straight Arm Pole)
SAPA (Straight Arm Ple Adjustable)
TN (Trunnion)
YK (Yoke)
5 Year Warranty
ETL listed
OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
FINISH
OPERATING TEMP.
LISTING
WARRANTY
ACCESSORIES
PHOTOMETRICS
SLIM-100W/
Type-3
SLIM-300W/
Type-3
