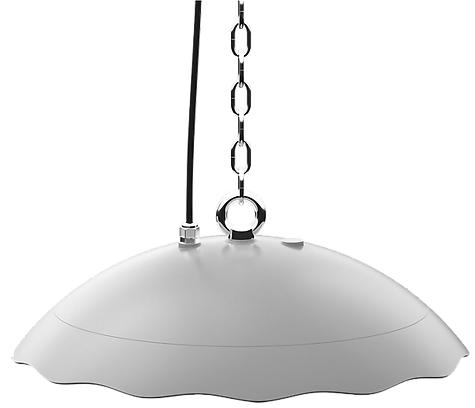

LED High Bay

PRISTINE-H

(100W-200W)

PRISTINE-H Web 1.png

Product Description:

The Pristine-H Series is designed specifically for food processing applications; providing a clean, modern look and at the same time a
powerful fixture providing up to 130 lm/W. The Pristine-H was designed with safety as a high priority; no glass or exposed screws, an easy to wash model with a IP69K rating ensuring a weatherproof and corrossion
resistant finish. The Pristine-H also comes with a unique Fresnel Lens which can flexibly cover any quantity of LEDs, suitable for a diverse PCB board layout. The Pristine-H is also available with a variety of optional
accessories, making it a very verasitile option.

FEATURES:

Application:

LED Source:

Warranty:

Long Life:

CRI:

Working Temp:

IP Rating:

Lab Tested:

Solid State:

Instant-On:

Qualifications:

LED High Bay

Philips Lumileds

5 years

100,000 +calculated hours at L70 standards

>70 (80 available)

-22°F to 122°F

IP 69K

National listing lab test in accordance with IES standards

High-shock and High-Vibration Resistance

Instant-On and Instant Re-strike

ETL / NSF rated

Fixture Model
Certification
Total Lumens

Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
PRISTINE-H 100W
PRISTINE-H 150W
PRISTINE-H 200W
ETL / NSF
ETL / NSF
ETL / NSF
14,066.8 lm

20,494.8 lm

27,715.3 lm
140.6 lm/W
136.4 lm/W
138.4 lm/W
19.26 x 7.22
19.26 x 7.22
19.26 x 7.22
14.52
14.96
15.62
120°/90°/60°
120°/90°/60°
120°/90°/60°

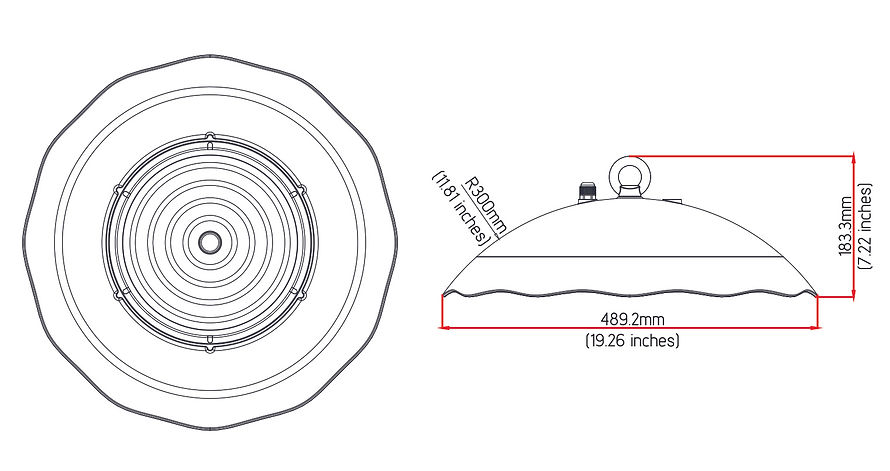

Dimensions:

PRISTINE-H Dm.jpg

PRISTINE-H

High Bay Series

General Info

EXPECTED LIFE:

100,000 + calculated hours at L70 standards

CRI:

>70 (80 available)

COLOR TEMPERATURE:

3000K, 4000K, 5000K

HOUSING:

Aluminum

LENS:

Plastic

LED CHIPS:

Philips Lumileds

DRIVER:

Sosen

BEAM ANGLES:

60°, 90°, 120°

WATTAGES:

100W, 150W, 200W

INPUT LINE VOLTAGES:

100-277V, 277-480 VAC (optional)

INPUT LINE FREQUENCY:

50-60 Hz

POWER FACTOR:

> 0.95



DIMMABLE:

0-10V (optional)



THD:

< 20%

-22°F to 122°F

Protective UV stabilized powder coated

finish



Black

White

Silver



Other colors available with linear driver/driver box (in place of circular driver). Contact our sales team for details

DIMMING:

0-10V

DALI

PC CONICAL LENS:

PC

EMERGENCY BATTERY BACKUP:

10EM (10W EM Battery)

20EM (20W EM Battery)

30EM (30W EM Battery)

MOTION SENSOR:

MS

MOUNTING OPTIONS:

HR (Hanging Ring)

PM 3/4 (M12 to 3/4" NPT Pendant w/ Adapter

5 Year Warranty (fixture)

2 Year Warranty (emergency battery)

ETL listed

OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
FINISH
OPERATING TEMP.
LISTING
WARRANTY
ACCESSORIES

PHOTOMETRICS

PRISTINE-H 100W/
90°
PRISTINE-H 200W/
90°

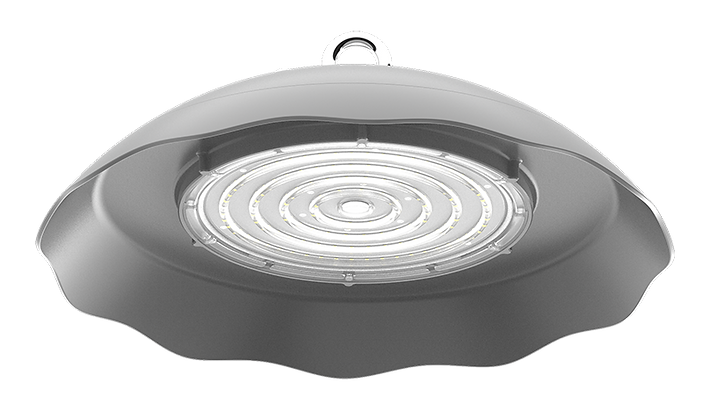

GALLERY

PRISTINE-H Web 2.png

ACCESSORIES

PRISTINE-H Web 3.png

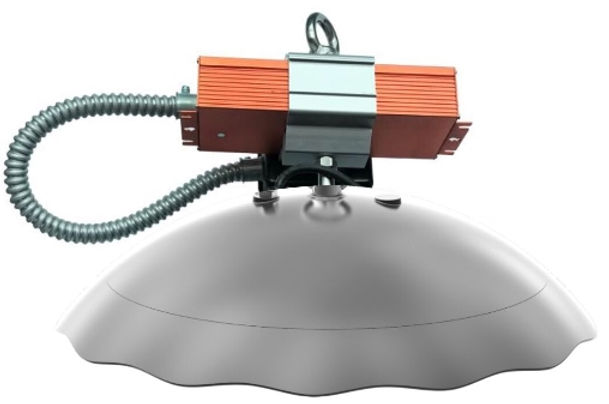

PRISTINE-H with EM Battery.jpg
PRISTINE-H w/EM Battery
PRISTINE-H w/PC Conical Lens
