LED Post Top

LUNA-YR

(30W-120W)

Product Description:

The LUNA-YR Series post top fixture provides an elegant and durable design that can withstand extreme working temperatures. This series is well-suited for parks, shopping malls, courtyards, streets, etc. The housing is made out of die cast aluminum with excellent heat dissipation and the surface is treated with a powder coated finish for corrosion and static resistance. The calculated life span for this fixture is 100,000 hours.

FEATURES:

Application:

​

LED Source:

​

Warranty:

​

Long Life:

​

CRI:

​

Working Temp:

​

IP Rating:

​

Lab Tested:

​

Solid State:

​

Instant-On:

​

Qualifications:

LED Post Top

Philips Lumileds 3030

5 years

100,000 +calculated hours

>70

-4°F to 122°F

IP 65

National listing lab test in accordance with IES standards

High-shock and High-Vibration Resistance

Instant-On and Instant Re-strike

ETL listed

Fixture Model

LED

Chips

Total Lumens


Efficacy

(lm)

Dimensions

(Inch)

Weight

(lbs)

Beam

Angle

LUNA-YR (SM) 30W

​

LUNA-YR (SM) 60W

​

LUNA-YR (LG) 30W

​

LUNA-YR (LG) 60W

​

LUNA-YR (LG) 120W

Philips Lumileds 3030

​

Philips Lumileds 3030

​

Philips Lumileds 3030

​

Philips Lumileds 3030

​

Philips Lumileds 3030

3,600 lm

​

7,200 lm

​

3,800 lm

​

7,500 lm

​

15,500 lm

> 120

​

> 120

​

> 126.6

​

> 125

​

>129.1

25.3 x 11.8 x 11.8

​

25.3 x 11.8 x 11.8

​

34.7 x 17.4 x 17.4

​

34.7 x 17.4 x 17.4

​

34.7 x 17.4 x 17.4

11.4

​

12.1

​

16.5

​

16.5

​

16.5

120°

​

120°

​

120°

​

120°

​

120°

Dimensions:

LUNA-YR Small Housing

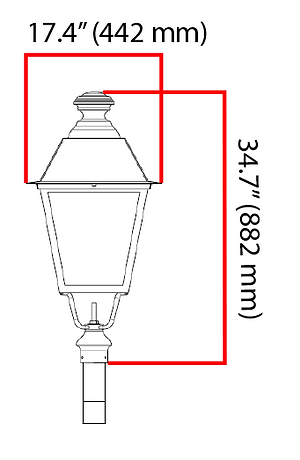

LUNA-YR Large Housing

LUNA-YR

Post Top Series

General Info

EXPECTED LIFE:

100,000 + calculated hours

​

CRI:

>70

​

COLOR TEMPERATURE:

3000K, 4000K, 5000K

HOUSING:

Die-cast aluminum

LENS:

Polycarbonate

LED CHIPS:

Philips Lumileds 3030

​

DRIVER:

Sosen

​

BEAM ANGLES:

Type-V (120°)

WATTAGES:

30W, 60W, 120W

INPUT LINE VOLTAGES:

100-277V

INPUT LINE FREQUENCY:

50-60 Hz

POWER FACTOR:

0.90

DIMMABLE:

0-10V (optional)

​

-4°F to 122°F

Protective UV stabilized powder coated

finish

Black

For other colors options, please contact our sales team for details

BUTTON PHOTOCELL:

Button PC

​

PHOTOCELL:

3P (3-pin)

5P (5-pin)

​

PHOTORECPTACLE:

3P (3-pin)

5P (5-pin)

7P (7-pin)

​

SURGE PROTECTION:

10kV

20kV

​

SQUARE MOUNTING (L x W):

4.02", 5.04", 6.03"

​

ROUND MOUNTING (Diameter):

3.07", 4.02", 4.53", 5.04", 6.03"

5 Year Warranty

UL listed

PHOTOMETRICS

LUNA-YR 30W

LUNA-YR 120W


GALLERY

Pole Adapters
