LED Shoebox

Driver on Board

dob-sb

(25W-200W)

Product Description:

The DOB-SB (Driver on Board) Series incorporates the latest AC DOB technology into its design resulting in high performance, higher efficacy, and longer lifespan. The outstanding photometric performance results in sites with excellent uniformity, greater pole spacing, and lower power density. The fixture can be mounted in a variety of different ways making it a versatile area, flood, billboard, or wallpack luminaire.

FEATURES:

Application:

LED Source:

Warranty:

Long Life:

CRI:

Working Temp:

IP Rating:

Lab Tested:

Solid State:

Instant-On:

Qualifications:

LED Shoebox

SSC

10 years

100,000 +calculated hours

>70

-40°F to 140°F

IP 65

National listing lab test in accordance with IES standards

High-shock and High-Vibration Resistance

Instant-On and Instant Re-strike

UL listed

Fixture Model
LED
Chips
Total Lumens
Type-2/ 50K
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
DOB-SB 25W
DOB-SB 50W
DOB-SB 75W
DOB-SB 100W
DOB-SB 150W
DOB-SB 200W
Cree
Cree
Cree
Cree
Cree
Cree
3,586 lm
6,314 lm
10,230 lm
11,999 lm
19,040 lm
21,982 lm
> 143
> 126
> 136
> 120
> 127
> 110
13 x 11 x 2.76
13 x 11 x 2.76
13 x 11 x 2.76
13 x 11 x 2.76
14 x 14 x 3
14 x 14 x 3
10
10
10
10
10
10
T2/T3/T4/T5
T2/T3/T4/T5
T2/T3/T4/T5
T2/T3/T4/T5
T2/T3/T4/T5
T2/T3/T4/T5

Dimensions:

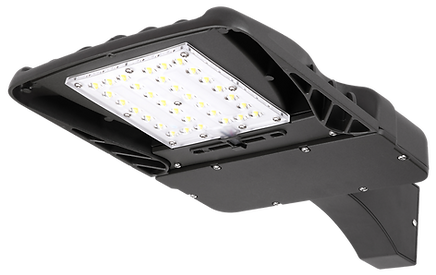

DOB-SB 25W to 100W

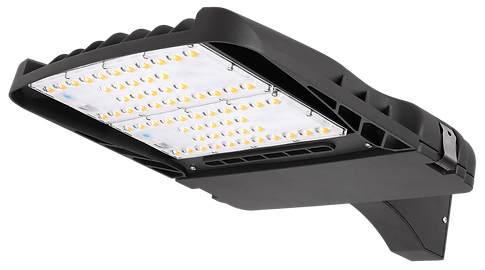

DOB-SB 150W to 200W

DOB-SB

Shoebox Series

General Info

EXPECTED LIFE:

100,000 + calculated hours; 12 hours per

day for 10 years

CRI:

>70

COLOR TEMPERATURE:

3000K, 4000K, 5000K, 5700K

HOUSING:

Aluminum



LENS:

Polycarbonate



LED CHIPS:

SSC



DRIVER:

Driver On Board (D.O.B.)

BEAM ANGLES:

Type-2, Type-3, Type-4, Type-5

WATTAGES:

25W, 50W, 75W, 100W, 150W, 200W



INPUT LINE VOLTAGES:

120-240V, 277V (optional)



INPUT LINE FREQUENCY:

50-60 Hz



POWER FACTOR:

> 0.99



DIMMABLE:

0-10V (optional)



THD:

< 15%

-40°F to 140°F

Protective UV stabilized powder coated

finish



Black

Grey

Bronze

For other color options, please contact our sales team for details.

MOTION SENSOR:

MS

PHOTOCELL:

PC

3 PIN PHOTOCELL:

3Pn

5 PIN PHOTOCELL:

5Pn

7 PIN PHOTOCELL:

7Pn

MOUNTING OPTIONS:

Square Pole Mounting

Round Pole Mounting

Slipfitter Mounting

Trunnion Mounting

10 Year Warranty

cUL listed

OPTICS
MATERIALS
PERFORMANCE
ELECTRICAL
OPERATING TEMP.
FINISH
ACCESSORIES
LISTING
WARRANTY

PHOTOMETRICS

DOB-SB 25W/
4000K/T3
DOB-SB 150W/
4000K/T3
