LED Canopy
MOON-H
(40W-100W)

Product Description:
The MOON-H Series is All Green Lighting's newest LED canopy light. It has a very sleek and modern look, and is available in a wide color temperature range and several different mounting options making it a very versatile option when fulfilling your LED lighting needs. Also available with an emergency battery backup and motion sensor options, as well as providing up to 120 lm/W; making the MOON-H a viable option when selecting your next LED fixture.
FEATURES:
Application:
​
LED Source:
​
Warranty:
​
Long Life:
​
CRI:
​
Working Temp:
​
IP Rating:
​
Lab Tested:
​
Solid State:
​
Instant-On:
​
Qualifications:
LED Canopy
Honglitronic
5 years
100,000 +calculated hours at L70 standards
>70 (80 available)
-22°F to 122°F
IP 66
National listing lab test in accordance with IES standards
High-shock and High-Vibration Resistance
Instant-On and Instant Re-strike
ETL
Fixture Model
Certification
Total Lumens
Efficacy
(lm)
Dimensions
(Inch)
Weight
(lbs)
Beam
Angle
MOON-H 40W
​
MOON-H 60W
​
MOON-H 80W
​
MOON-H 100W
​
ETL
​
ETL
​
ETL
​
ETL
​
5,109.0 lm
​
7,289.8 lm
​
9,471.0 lm
​
12,080.7 lm
​
127.7 lm/W
​
121.5 lm/W
​
118.4 lm/W
​
120.8 lm/W
​
​
​
see
​
below
​
​
​
5.28
​
5.28
​
5.28
​
5.28
​
165°
​
165°
​
165°
​
165°
​

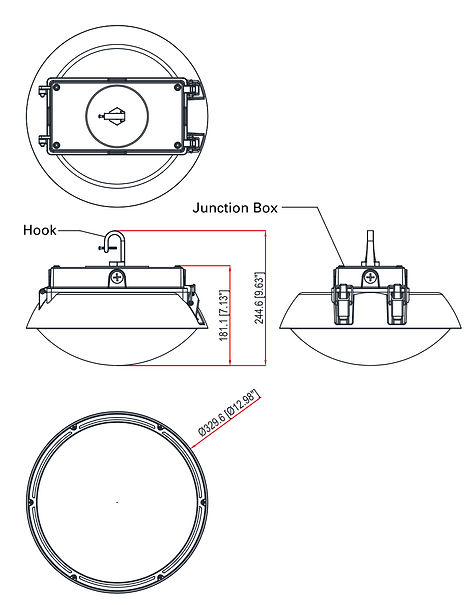

Dimensions:
MOON-H (Ceiling Mount)


MOON-H (Pole Mount)
MOON-H
Canopy Series
General Info

EXPECTED LIFE:
100,000 + calculated hours at L70 standards
​
CRI:
>70 (>80 available)
​
COLOR TEMPERATURE:
3000K, 4000K, 5000K, 5700K, 6500K
HOUSING:
Aluminum
​
LENS:
Polycarbonate
​
LED CHIPS:
Honglitronic
​
​
BEAM ANGLES:
165°
WATTAGES:
40W, 60W, 80W, 100W
​
INPUT LINE VOLTAGES:
100-277V
​
INPUT LINE FREQUENCY:
50-60 Hz
​
POWER FACTOR:
> 0.93
DIMMABLE:
1-10V (optional)
​
-22°F to 122°F
Protective UV stabilized powder coated
finish
Black
White
For other color options available, please contact our sales team for details.
EMERGENCY BATTERY BACKUP:
EM
​
MOTION SENSOR:
MS
​
MOUNTING OPTIONS:
SM: Surface Mount
HK: Hook
PL: Pole (1/2")
5 Year Warranty (fixture)
2 Year Warranty (emergency battery)
ETL listed

OPTICS

MATERIALS

PERFORMANCE
ELECTRICAL

FINISH


OPERATING TEMP.
LISTING

WARRANTY

ACCESSORIES


PHOTOMETRICS
MOON-H 40W/
5000K/165°
MOON-H 100W/
5000K/165°
